For inferencing it is “capable of delivering up to 157Top/s for multiple concurrent AI pipelines, combined with high-speed IO interface options including 10Gbit/s Ethernet, 5G and Wi-Fi”, according to Supermicro.

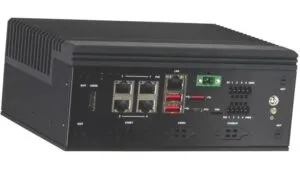

Dubbed ARS-E103-JONX, it measures : 185 x 80 x 140mm and works over -25 to +60°C with 0.7m/s airflow.
Application processing in the comes from 64bit Arm Cortex-A78AE (v8.2) cores, eight in the 16G version of Orin NX and six in 8G version.
ARS-E103-JONX-H2 has the eight core CPU, which means that it ‘Ampere’ GPU has 1,024 CUDA cores and 32 Tensor cores, running at 918MHz.
On top of this are two 614MHz 20Top/s (sparse INT8) deep learning accelerators (DLAs).
ARS-E103-JONX-L2 is the six core 8Gbyte version of the computer, which has a slower (765MHz) GPU and only one (610MHz) DLA.
Supermicro’s claim of 157Top/s comes from the 16Gbyte processor in Nvidia’s 8V 40W ‘Maxn_super’ mode, which up-clocks the GPU to 1,173MHz, the DLA to 1,229MHz. It is quoted in sparse INT8 Top/s, and the equivalent dense INT8 figure is 78Top/s.
Can the computer sustain 157Top/s?
“ARS-JONX-E103 is capable of reaching the 157Tops using the ‘Maxn_super’ setting, and with the full complement of the interfaces on the motherboard, at 60°C. Supermicro temperature specification are always with 100% CPU performance, no degradation, no throttling,” the company told Electronics Weekly, adding the caveat: “When the POE supply, 5G and Wi-Fi is needed, the maximum temperature will be 50°C.”
It also cautioned: “Please keep in mind that the 157Top/s is using sparse int8 under benchmark conditions. In real life, the performance will depend on additional factors – mainly model quantising and optimisation.”
In one of its 5V lower-power modes, Nvidia rates the Jetson Orin NX at up to 100 sparse INT8 Top/s and 50 dense INT8 Top/s for the version with 16Gbyte of on-board EEC LPDDR5 memory (’16G’), or up to 70 sparse and 35 dense INT8 Top/s for the 8Gbyte (‘8G’) version.
For main memory there is a M.2 PCIe 4.0 (x4) NVMe slot (M-key 2280 default).

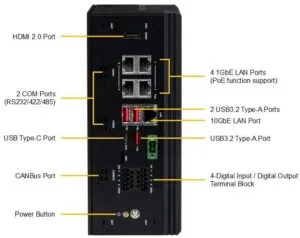

Interfaces include 1x 10Gbit/s Ethernet, 4x 1Gbit/s Ethernet, 1x USB 3.2 Gen2 Type-C, 3x USB 3.2 Gen2 Type-A, HDMI for a display, 2x RS232/422/485 serial, 1x CAN, 4x digital inputs and 4x digital outputs.
Options include a DIN rail clip for mounting.
Find the ARS-E103-JONX-H2 on this Supermicro web page, and find more about the Orin NX’s power modes in this Nvidia web page
