Advantages of GaN-on-Si HEMT for 5G mm-wave range

The devices also perform with state-of-the-art noise figures down 1.1dB.

“These results suggest that moderate scaling could deliver competitive technology, when combined with optimised epitaxial structure and process,” say the researchers.

The researchers see the low-voltage (3–6V) RF devices as being suitable for monolithic integrated mobile transmit/receive (T/R) modules for the 5G high-frequency, mm-wave range (FR2, 24.25–71.0GHz).

The low 5G range, FR1, covers 410–7125MHz. A proposed FR3, apparently not yet official, would bridge the gap between FR1 and FR2, i.e. 7.125–24.25GHz.

Existing technologies such as (mSiGe HBTs and GaAs pHEMTs struggle to meet the stringent requirements for FR2.

The high-volume mobile device market needs the low-cost and mass-production scale that could come from achieving high performance on GaN-on-Si HEMT platforms.

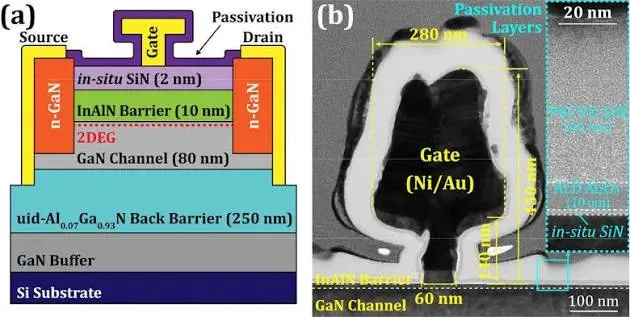

The GaN material for the devices (Figure 1) was grown on high-resistivity silicon (Si) by metal-organic chemical vapor deposition (MOCVD). The structure included back- and top-barriers consisting of alu_minium gallium nitride (AlGaN) and indium alu_minium nitride (InAlN) alloys, respectively.

The researchers comment: “The InAlN barrier provides strong polarization and a low gate-to-channel distance, enabling improved two-dimensional electron gas (2DEG) control. Additionally, the configuration of the ultra-thin GaN channel and the AlGaN BB further enhances electron confinement, effectively suppressing short-channel effects and lowering channel noise.”

The 80nm-deep n-GaN source/drain contact regions were grown by 725°C molecular beam epitaxy (MBE). The T-gate consisted of nickel/gold. The passivation was a bilayer of 250°C atomic layer deposition (ALD) alu_minium oxide (Al₂O₃, 10nm) and 300°C plasma-enhanced CVD silicon nitride (60nm), aimed at suppressing surface trapping and leakage.

The researchers report that the passivation effectively reduced current collapse from more than 80% down to 24% in a 150nm gate-length (L_g) device. Gate lag was 10%. The HEMT’s other measured characteristics were 1.58A/mm maximum drain current, 1.48Ω-mm on-resistance, threshold voltage −2.9V, and 0.52S/mm peak transconductance at 6V drain bias.

For the small-signal frequency performance the researchers report for a 100nm-gate HEMT cut-off (f_T)/maximum oscillation (f_max) respective values of 100GHz/254GHz at 10V drain. The f_max value for 5V drain was still more than 200GHz.

The researchers add: “The L_g = 150nm device still achieves an excellent f_maxxL_g of 34.9GHz-μm which is comparable to the highest reported values obtained from extremely scaled GaN-on-Si HEMTs.”

The PAE of a 100nm-gate device exceeded 60% across the 3–6V low-voltage range. The peak occurred at 63.7% at 3V and 4V.

“Thanks to the effectiveness of the proposed bilayer passivation in suppressing surface trapping effects, no significant difference in performance is observed between CW and pulsed modes,” the team comments.

The linear gain varied with L_g from 10.8dB at 150nm gate, through 11.1dB at 100nm, down to 14.7dB at 60nm. The researchers comment: “The high efficiency in low-voltage operation proves its potential for mobile applications.”

The researchers explain the low-noise performance measured in a cold-source system: “The excellent electron confinement, high gain, and low parasitic resistance, enabled by the ultra-thin channel, AlGaN BB, and regrown ohmic contacts, result in outstanding low-noise characteristics (NF_min < 1.4dB) across FR3 to FR2 bands from 10GHz to 40GHz, even without aggressive lateral scaling.”

The lowest NF_min of 1.1dB corresponded to a G_a of 8.3dB. Lowering the operating frequency to 13GHz, NF_min reduced to 0.8dB and G_a increased to 14.1dB. Scaling L_g down also increased G_a and reduced NF_min.

Benchmarking against previous reports, the team claims record high efficiency, more than 60%, and state-of-the-art 1.1dB noise performance at 100nm, i.e.without extreme lateral scaling.

A further benchmark shows the HEMTs to have high efficiency and low noise simultaneously compared with both GaN/Si and the more expensive GaN on silicon carbide (SiC) technology
